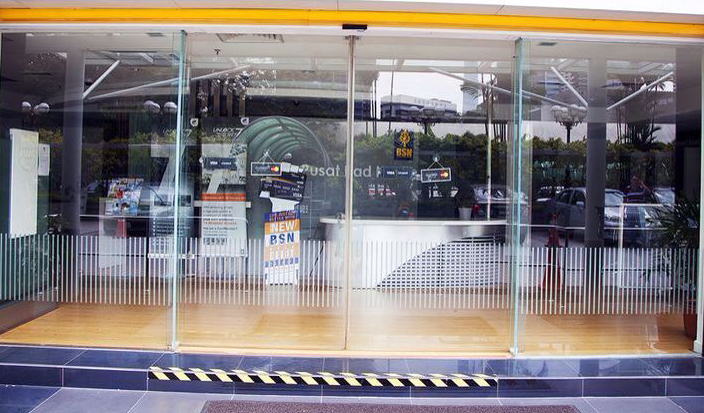

K2 / L-2 Sliding Door
|
MICRO-CONTROLLER High range AC voltage input functions AC100V to AC240V. Catch Return function - the door can return when it hits againts obstacle. TWIN-WHEELS HANGERS Stable and Durable "Seesaw Wheel" Hanger. Quite and smooth WORM GEAR MOTOR High techology, small in size, more space COMBINED TERMINAL BLOCK User-friendly & necessary With special contact for "Interlock Systems" |
IF the height of the Door- Leaf is 2300mm, then the total height of the aluminium profile is 2,335 mm. |
TYPE | L-2 | |

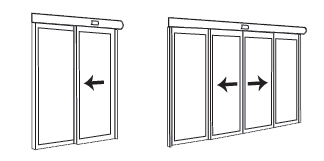

MODEL | SINGLE-WINGED | BI-PARTING |
DOOR WEIGHT | 120KG x 1 (Door) | 90kg x 2 (Door) |
DOOR WIDtd | DW =500mm - 2500mm | DW =500mm - 2500mm |
INSTALL WAY | Surface install | Surface install |
Motor | DC24V 75W WORM GEAR MOTOR | |
CONTROL | MICRO-CONTROLLER | |
POWER COMSUMPTION | 75W | |
VOLTAGE | eitder AC 100V-240V | |
ENVIROMENTAL TEMPERTURE | -20 °C | |
VOLUME | 60 decibel (max.) | |
STARTING SPEED | 200~550mm / second | |
STARTING TIMES | 0-20sec. (regulable) | |
TRANSMISSION IMPORTANT CONDITION | RACK BELT S8M | |
OPENING DOOR RANGE | FULL / HALF-OPEN (regulable) | |
TRACTION FORCE | 3kg |
